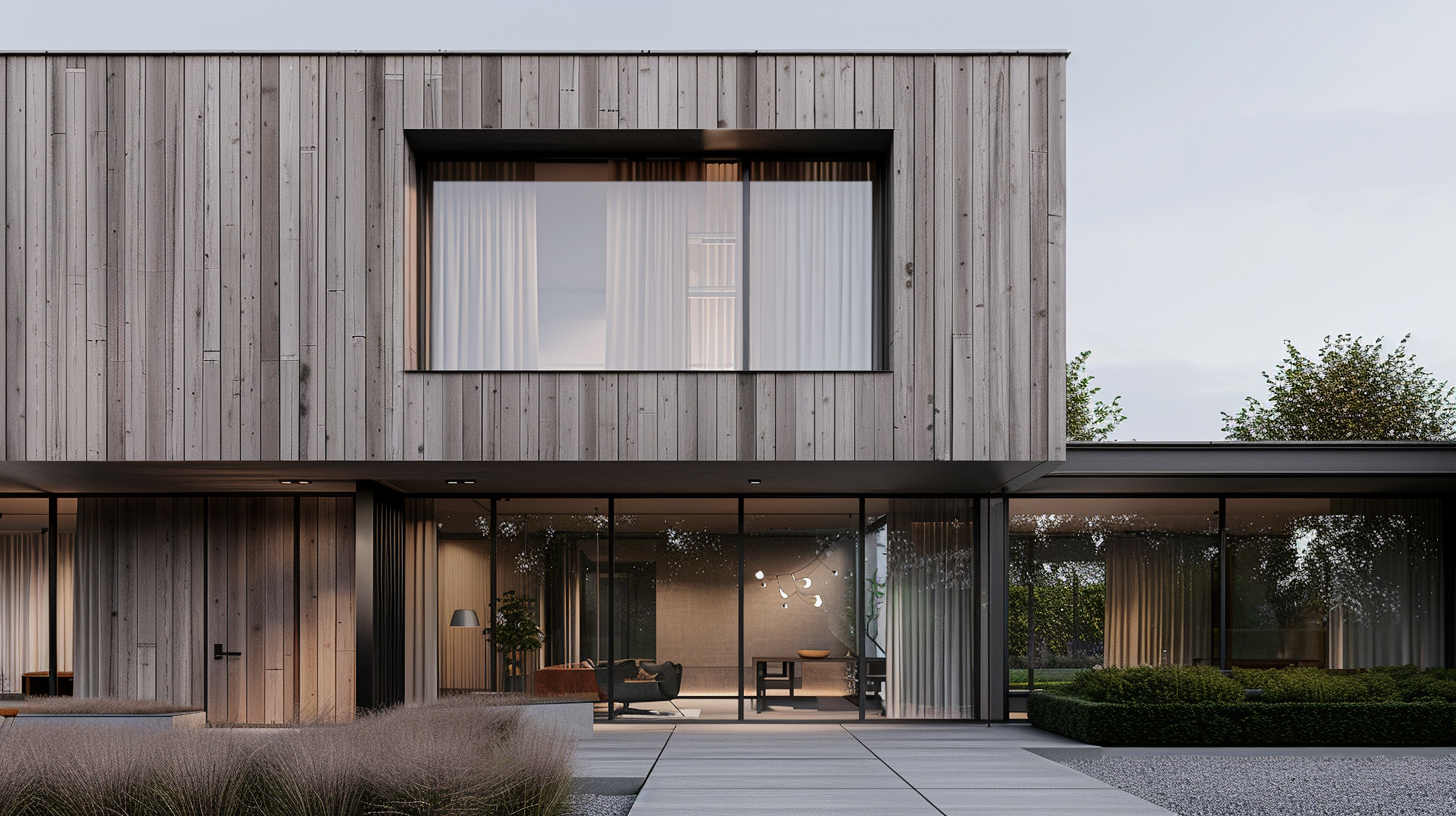

The TM 77N MoreView window system has been designed for modern architecture, where proportions, light and the reduction of visible construction elements are of key importance.
The system enables the design of minimalist glazing solutions, with a strong focus on detail aesthetics and the purity of the façade line.

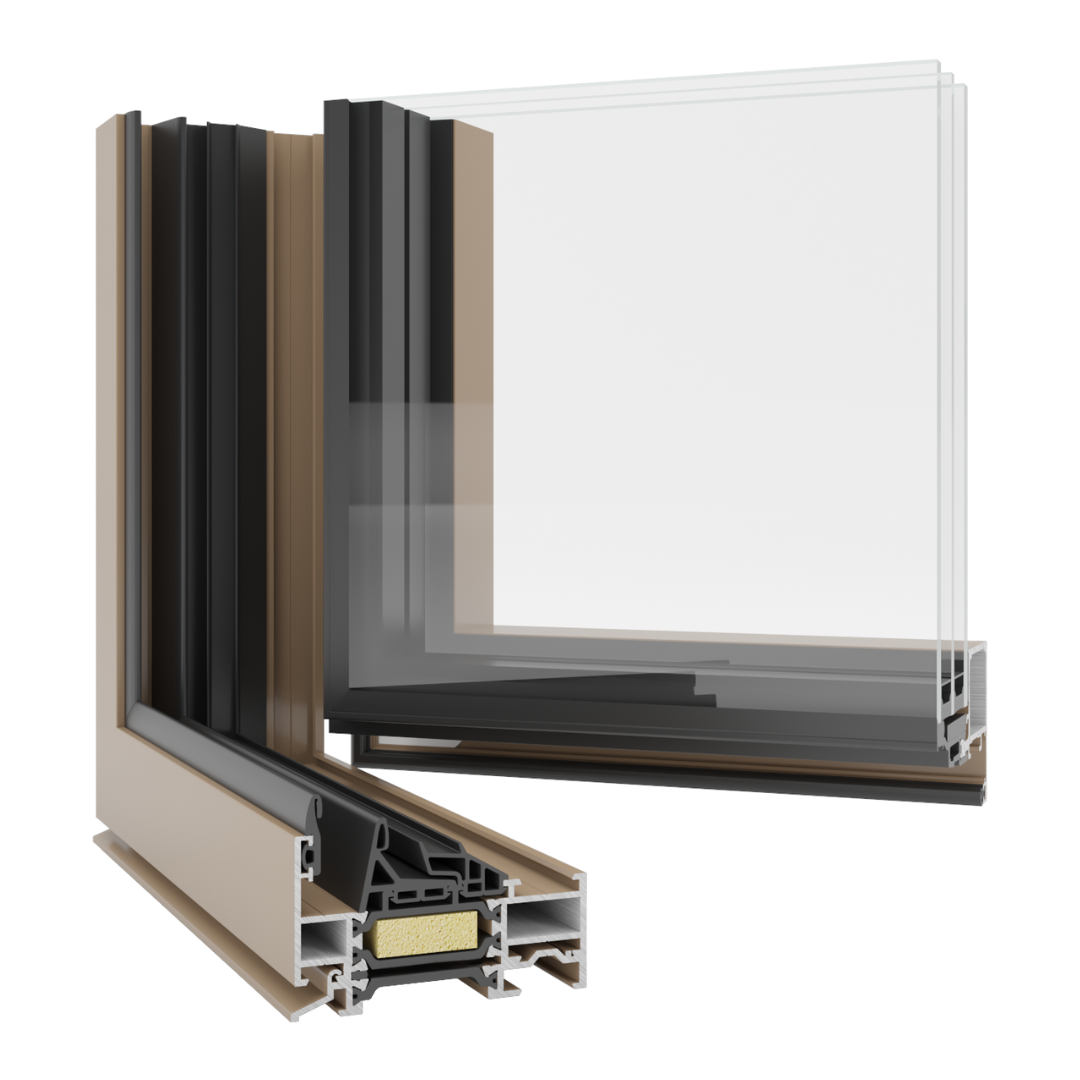

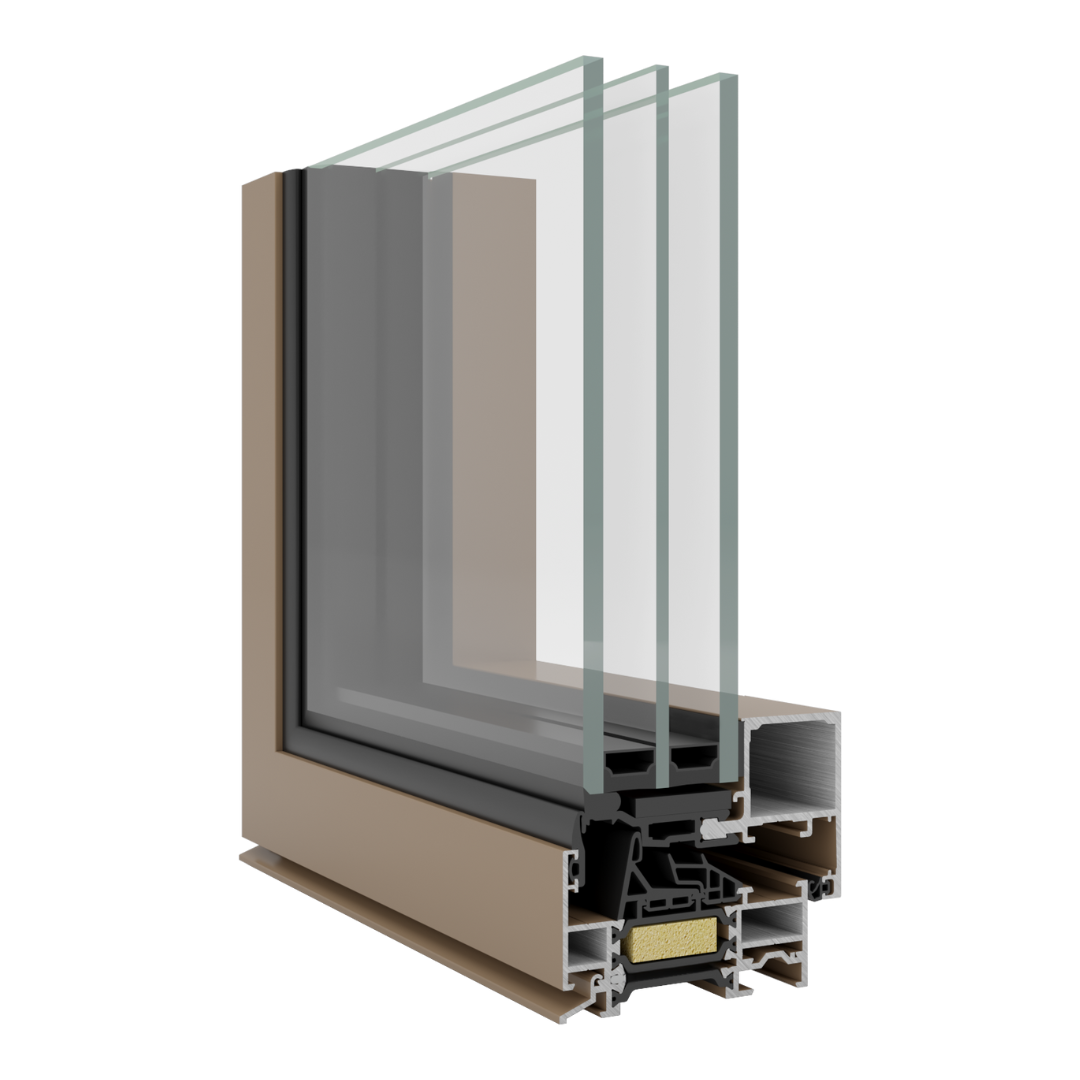

The optimised profile construction allows for a significant reduction of visible junction widths both externally and internally, while maintaining stability and required performance parameters. Drainage concealed within the profile eliminates the need for face drainage, ensuring a coherent and uniform façade surface. The possibility of concealing the frame within the wall and designing glazing with a maximum glass surface further enhances the effect of a minimalist façade and maximised access to natural light.
The MoreView window system has been designed with project flexibility in mind. The availability of various opening configurations allows solutions to be tailored to the specific requirements of both residential and commercial buildings. Thoughtful structural solutions and modern glass installation technology support efficient prefabrication and precise execution.
The MoreView window naturally complements the Yawal portfolio, serving as a tool for projects where aesthetic consistency, detail quality and full control over the final architectural outcome are essential.
Advantages of the system
- Profile minimisation – maximum glass surface with reduced visibility of junctions on both the interior and exterior sides.
- Consistent architectural detail – a uniquely designed handle integrated into the profile, without interfering with the sash line.
- Concealed drainage – no face drainage, ensuring a “clean” façade and an orderly system aesthetic.
- Design flexibility – the possibility of using various opening schemes and glazing configurations.
- Profile without an internal clip – provides a uniform line without unnecessary visual divisions.
- Modern glass installation technology – use of adhesive tapes to streamline and optimise the production process.
Technical parameters
| ENERGY |
|
||||
| COMFORT |
|
||||
| SAFETY |
|
System characteristic
| Frame structural depth |
77 mm |
||||
| Sash/leaf structural depth |
88,5 mm |
||||
| Infill thickness |
46-50 mm |
||||
| Maximum dimensions |
|
||||
| Maximum sash weight |
180 kg |
||||
| Structure type |
Fixed window, side-hung, tilt, tilt-and-turn, turn-and-tilt |
