The YAWAL TM 102HI system is intended to energy-saving and passive construction.

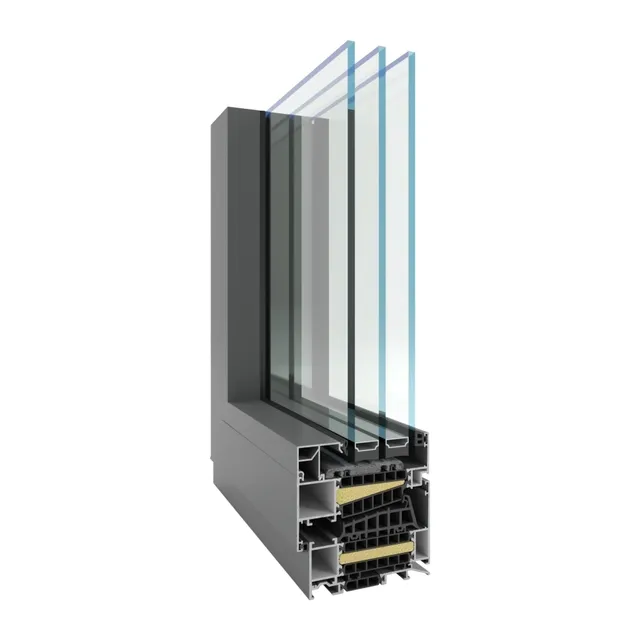

It will perform well in both public buildings and residential buildings. It is an extensive system of aluminium profiles for making modern types of windows and displays requiring high thermal insulation.
The innovative construction of the window sash with the applied insulator set at an angle in relation to the casing ensures a favourable arrangement of forces in the profile. This has made it possible to obtain high-strength profiles allowing for the manufacture of large and heavy structures. The system offers a wide range of glazing and the possibility to install all types of two- and three-chamber glass available on the market.
Advantages of the system
-
excellent level of energy efficiency Uf = from 0,45 W/m²K and very high water tightness thanks to the use of an innovative design of the central gasket,
-
excellent level of sound insulation confirmed by tests,
-
mfromern design of latch profiles in combination with new gaskets - the possibility of obtaining one plane on the aluminium-gasket line,
-
possibility of manufacturing glazing reversible profile,
-
possibility of creating structures with large surfaces,
-
possibility of making balcony door with low threshold and all-glass corner,
-
additional windproof insulation thanks to the use of a gasket at the joint of the glazing bead of the profile,

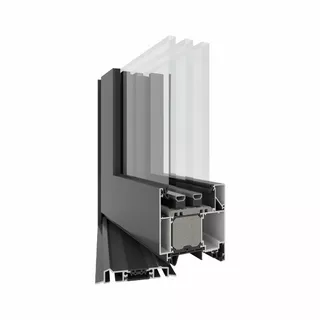

- enables the production of modern doors, ensuring excellent thermal insulation
- possibility of using full range of fittings available on the market: surface fittings, hidden fittings, PVC groove fittings, spindle handles of any shape, stainless steel handles.
Technical parameters
| WINDOWS | DOORS | ||
| ENERGY | Thermal insulation EN 10077-2 | Uw from 0,58 W/m²K | Uw from 0,7 W/m²K |
| COMFORT | Acoustic insulation EN ISO 140-3 | Rw = 39 ÷ 48 dB | Rw = 39 ÷ 48 dB |
| Air permeability EN 12207 | Class 4 | Class 4 | |
| Water tightness EN 12208 | E1800 | E750 | |
| SAFETY | Wind load resistance EN 12210 | Class C5/B5 | Class C5/B5 |
| Anti-theft protection EN 1627 | RC2 | RC2 |
System characteristic
| WINDOWS | DOORS | |
| Frame structural depth | 102 mm | 102 mm |
| Sash/leaf structural depth | 111,4 mm | 102 mm |
| Infill thickness | 35 ÷ 72 mm | 35 ÷ 72 mm |
| Maximum sash/leaf dimensions L x H | 1600 x 3000 mm | 1400 x 3000 mm/ |
| Maximum sash/leaf weight | 180 kg | 250 kg |
| Structure type | fixed, turn, tilt, turn and tilt window |
single-leaf, double-leaf doors, |
