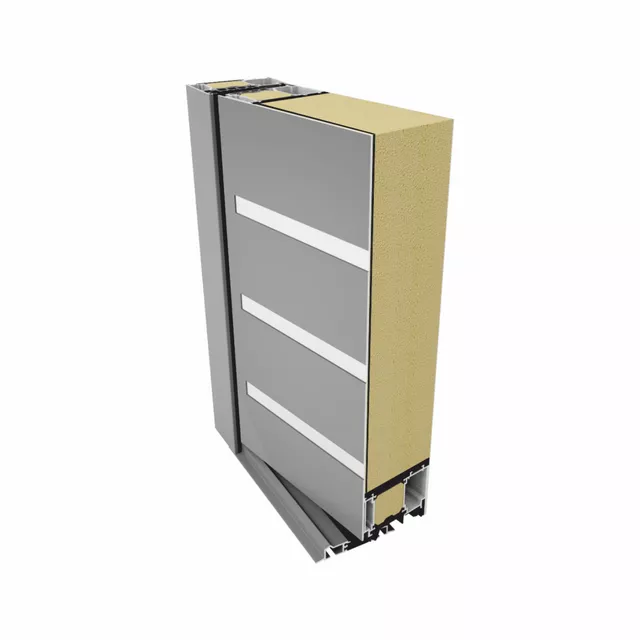

TM 102HI Prestige system

TM 102HI PRESTIGE – is the latest system of Yawal company intended for manufacture of exclusive entry door for passive and energy saving houses and apartment buildings.

Panel door solution was developed on the basis of system offered by YAWAL company – TM 102HI system.

A 3-chamber structure of profiles and, most of all, modern solution for thermal insulation at the joint of the door frame and the leaf enables us to obtain the best thermal insulation parameters available on the market, which perfectly reflect market trends aiming at maximum energy-saving of offered solutions. It is also necessary to pay attention to high quality of materials used for manufacturing.

The system allows for designing modern entry door in all combinations, which enables the system connection with window structures and TM 102HI transoms.

Advantages of the system

  • ensures insulation at the level of Uf from 0,5 W/m²K, which makes it
    perfect for passive houses,

  • allows full freedom in constructing exclusive entrance doors, regardless of configuration,

  • versions with a single-sided and double-sided panel are available,

  • mfromern multi-component central gasket between the frame and the leaf,

  • allows the use of a linear drainage solution,

  • the system is quick and easy to assemble,

  • possibility of using panels with all possible designs, with decorative
    designs of stainless steel and with decorative cuts,

  • the system has dedicated hardware solution.

Technical parameters

ENERGY Thermal insulation EN 10077-2 Uw from 0,8 W/m²K
COMFORT Acoustic insulation EN ISO 140-3 Rw = 34 dB
Air permeability EN 12207 Class 4
Water tightness EN 12208 7A
SAFETY Wind load resistance EN 12210 Class C5/B5
Anti-theft protection EN 1627 RC2

System characteristic

Frame structural depth 102 mm
Leaf structural depth 102 mm
Infill thickness 50 ÷ 102 mm
Maximum dimensions L x H 1300 x 3000 mm/2600 x 3000 mm
Maximum leaf weight 250 kg
Structure type

single-leaf doors, double-leaf door,
door with transom windows and sidelights
