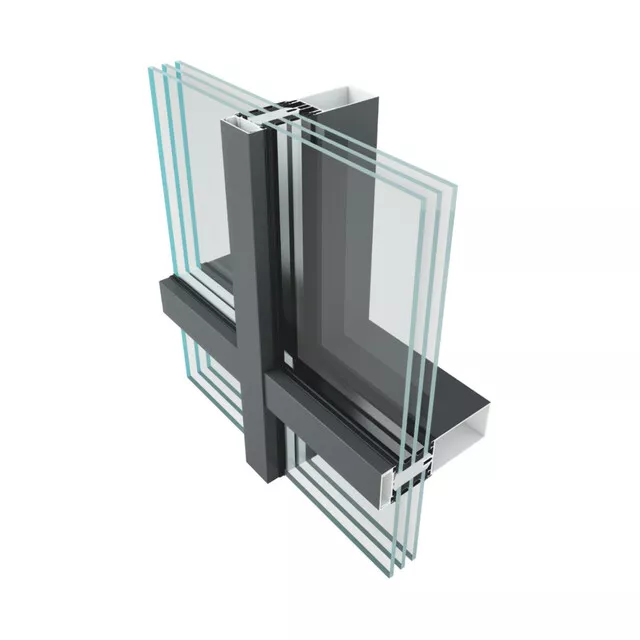

FA 50N HI system

FA 50N HI is the system with the highest thermal insulation properties.

Modern and at the same time energy efficient, with very high water and wind resistance. It is ideal for use in offices and public buildings. It also offers a wide range of architectural features.

The solution has some of the best performance among products in this class on the market. The unique foam insulator system and an option to use double-glazing allows excellent thermal insulation parameters.

Advantages of the system

  • possibility of creating constructions of various shapes (turns, bends,
    polygonal shapes)

  • complies with all thermal, acoustic and water tightness requirements,

  • wide variety of masking strips allows for diversified final appearance of
    curtain walls,

  • possibility of bending profiles, which makes it possible to create a
    variety of shapes and structure configuration adjusted to individual design requirements,

  • thanks to excellent thermal insulation, the system contributes to the
    reduction of heating costs in the building by minimizing heat losses and
    ensuring energy efficiency

  • the solution has one of best parameters amongst this class of products
    on the market,

  • possibility of connecting with all YAWAL systems.

Technical parameters

Thermal insulation EN 10077-2 Uf = 0,9 ÷ 1,92 W/m²K
Acoustic insulation EN ISO 140-3 Rw = 35 ÷ 53 dB
Air permeability EN 12207 AE 1650
Water tightness EN 12208 RE 2850
Wind load resistance EN 12210 2400 Pa
Anti-theft protection EN 1627 RC2, RC3, RC4
Impact resistance EN 14019 I5, E5

System characteristic

Minimum visible width (view from inside)

50 mm

Minimum visible width (view with outside)

20 mm

Minimum mullion depth

34 mm

Maximum mullion depth

350 mm

Glazing thickness

25 ÷ 64 mm

Glazing method

Glazing with pressure element
