New

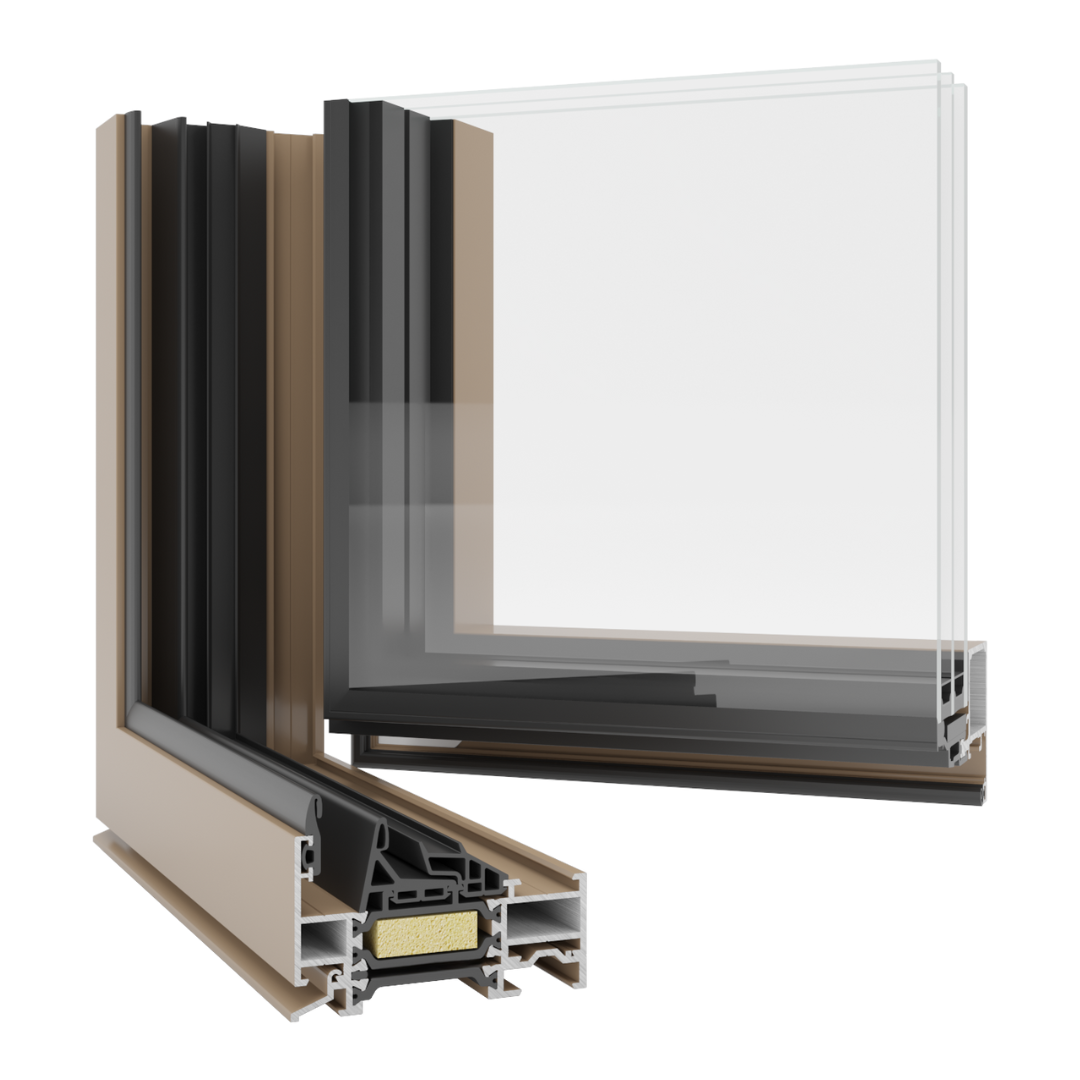

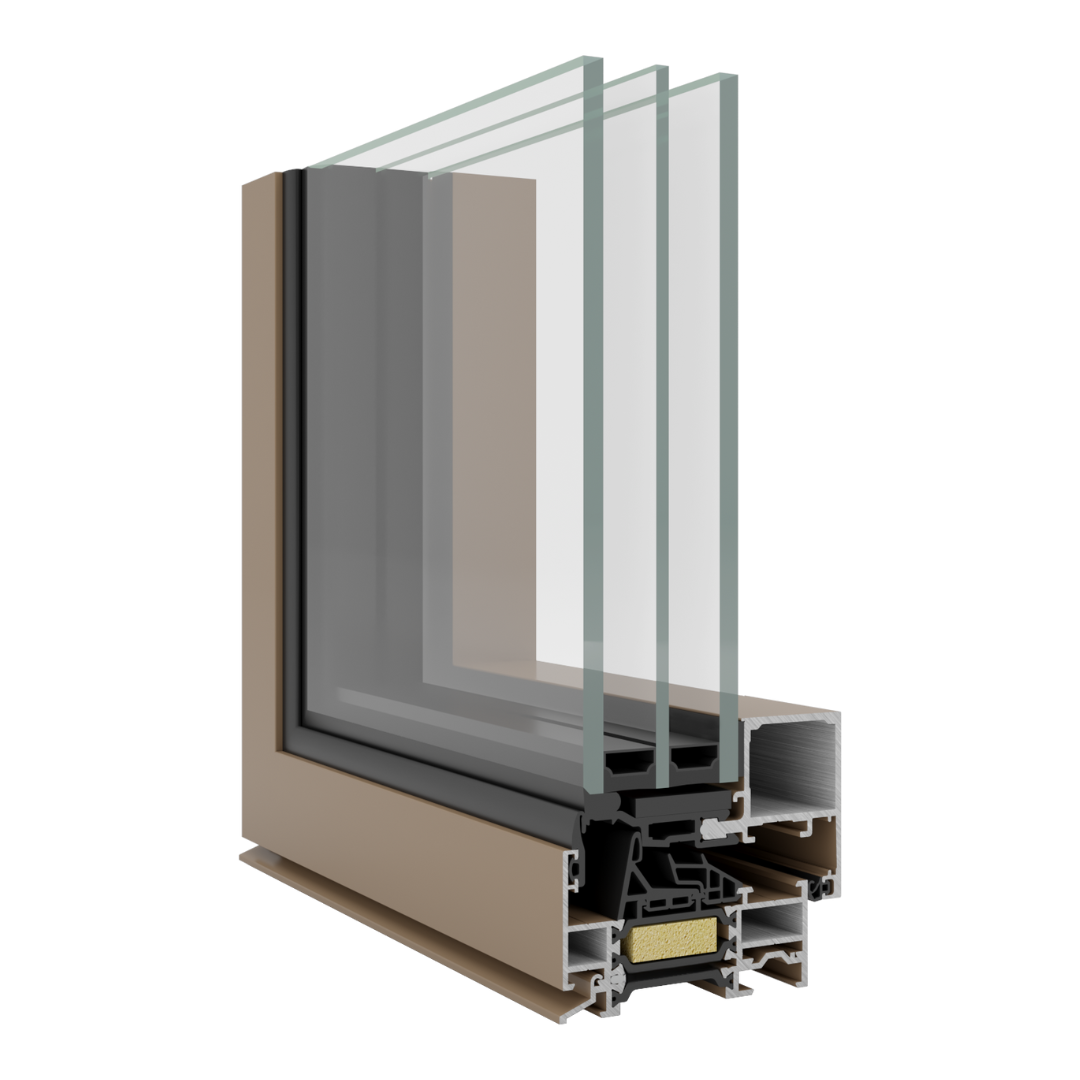

Yawal MoreView slim-frame windows
The MoreView window has been designed for modern projects where light and views play a key role. Reduced profile visibility combined with a maximised glass surface makes the boundary between interior and surroundings almost imperceptible.
This solution is intended for those who value clean, light and harmonious architecture. Thanks to the possibility of concealing the frame within the wall and the use of details that remain invisible at first glance, MoreView allows the focus to remain on what truly matters — space, light and the surrounding landscape.
The MoreView window is not only about design, but also about everyday comfort. Its well-thought-out construction provides very good thermal and acoustic insulation, protecting interiors from noise, cold and wind.
MoreView sets new standards in window and door joinery design: fewer visible elements, more light and calm inside the space.
MoreView – Free Your View.
Advantages of the system
- Minimalism and light – maximum glass surface with minimal profile visibility.
- Refined design – an “invisible” handle with a unique design, discreetly integrated into the profile.
- Clean façade – drainage concealed within the profile, without visible face drainage elements.
- More light, less detail – a carefully designed structure that reduces visible elements to an absolute minimum.
- Profile without an internal clip – ensures a clean, uniform line without unnecessary divisions.
Technical parameters
| ENERGY |
|
||||
| COMFORT |
|
||||
| SAFETY |
|

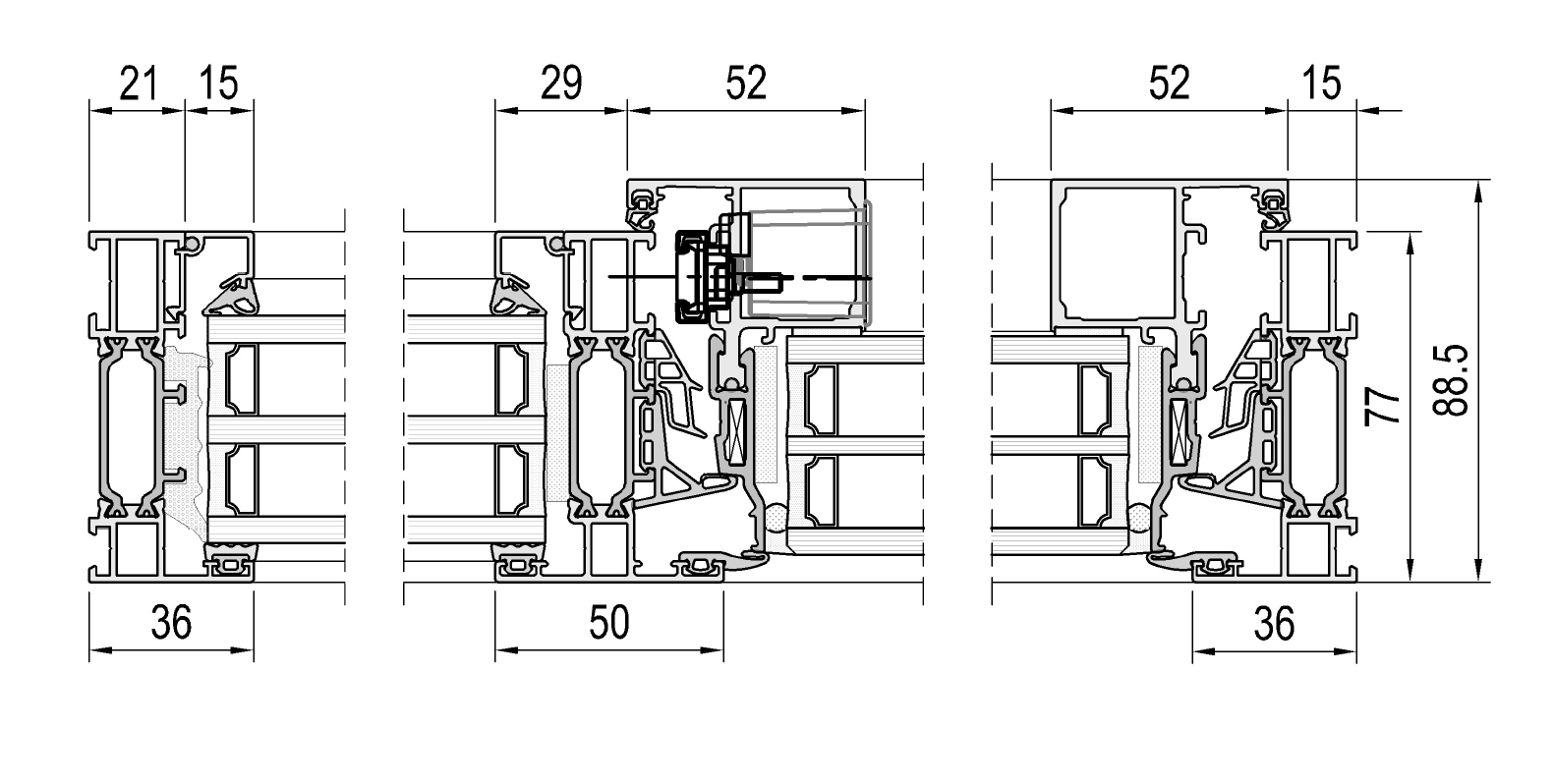

System characteristic
| Frame structural depth |
77 mm |
||||
| Sash/leaf structural depth |
88,5 mm |
||||
| Infill thickness |
46-50 mm |
||||
| Maximum dimensions |
|
||||
| Maximum sash weight |
180 kg |
||||
| Structure type |
Fixed window, side-hung, tilt, tilt-and-turn, turn-and-tilt |
